Amiga Floppy Driver Reader

Links and Instructions

• http://amiga.robsmithdev.co.uk/instructions
• https://www.hackster.io/RobSmithDev/arduino-amiga-floppy-disk-reader-writer-v2-2-239c97
• https://www.instructables.com/id/Amiga-Arduino-Floppy-Drive-CaseEnclosure/
• Thingiverse link to the floppy drive case here.

Notes

From the instructables link a key point:

A quick note on the wiring. I added a barrel jack to the back of the lid for the power. I joined the GND/0v from the power supply to the 0V on the Arduino, however the 5V from the power supply only goes to the floppy drive.

From Step 3 of https://www.instructables.com/id/Amiga-Arduino-Floppy-Drive-CaseEnclosure/

This contradicts the circuit diagram where it shows the 5v going to the floppy drive, the 34 pin header and the arduino.

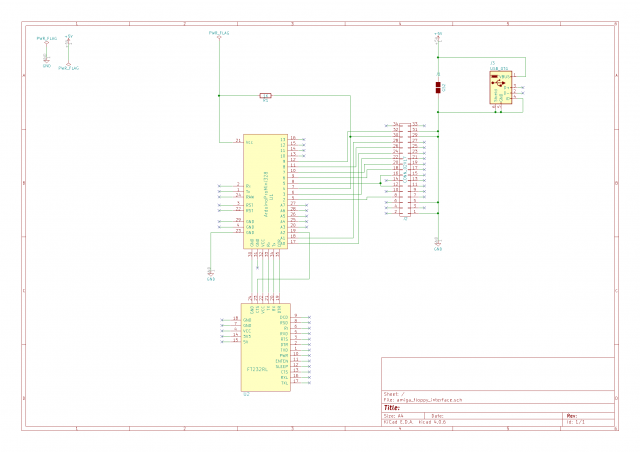

Circuit

Future Projects

• It would be interesting to build a raspberry pi into enclosure running an emulator.
• Add a change to the Amiga emulator so that the floppy drive can be used to read “real” Amiga disks.
