Beer Fridge Temperature Controller

Posted on by

Parts List

NameQuantityLinkCost
Box1
STC-10001Amazon£12.95
Patress Box2B&Q£0.50
Single Socket2B&Q£2.00
Kettle Lead1
6A Fused IEC Socket1Banggood£1.48
Terminal Block (30A)
(This is something I already had)		1B&Q£2.10
M4x12 Bolt6
M4x8 Bolt2
M4 Nut8
Parts List
  • Drill
  • 4mm Drill Bit
  • 8mm Drill Bit
  • Soldering Iron
  • Heat Shrink

Build – 3D Printing

https://www.tinkercad.com/things/jjzzkjksCX3

https://www.tinkercad.com/things/25pXWPOk48J

Build – Drilling the case

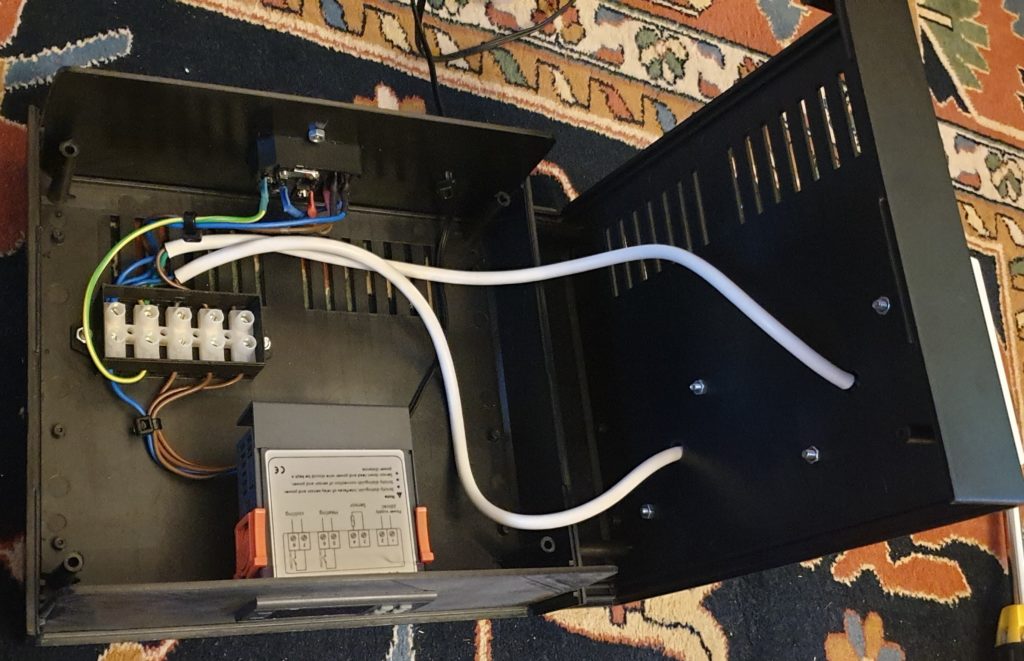

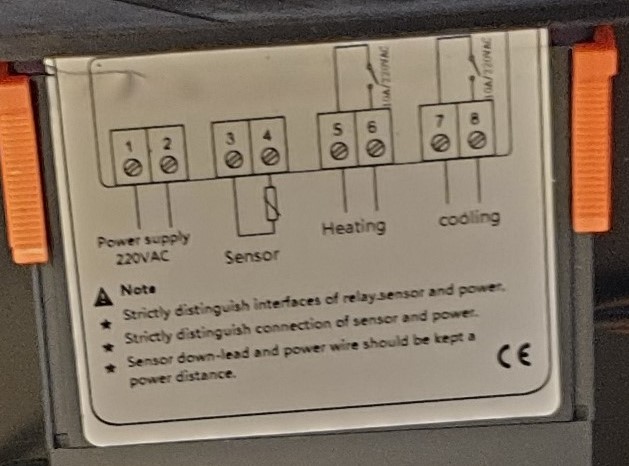

Build – Wiring the STC1000

Build – Wiring the IEC Connector

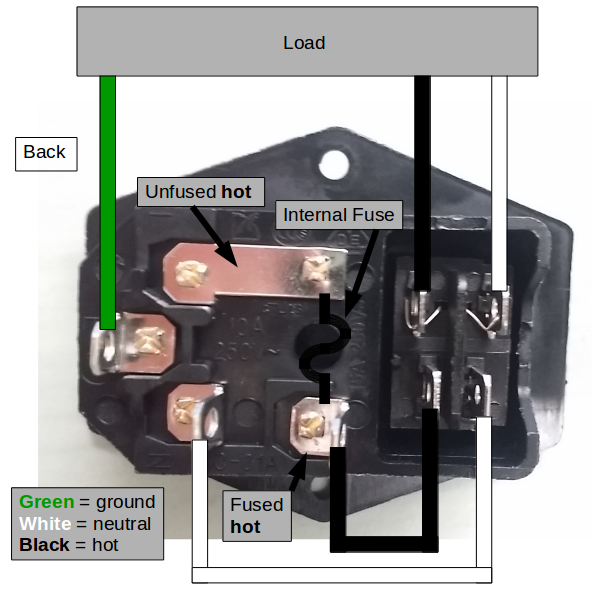

Copied from https://www.instructables.com/Wire-Up-a-Fused-AC-Male-Power-Socket/
Credit: https://www.instructables.com/Wire-Up-a-Fused-AC-Male-Power-Socket/

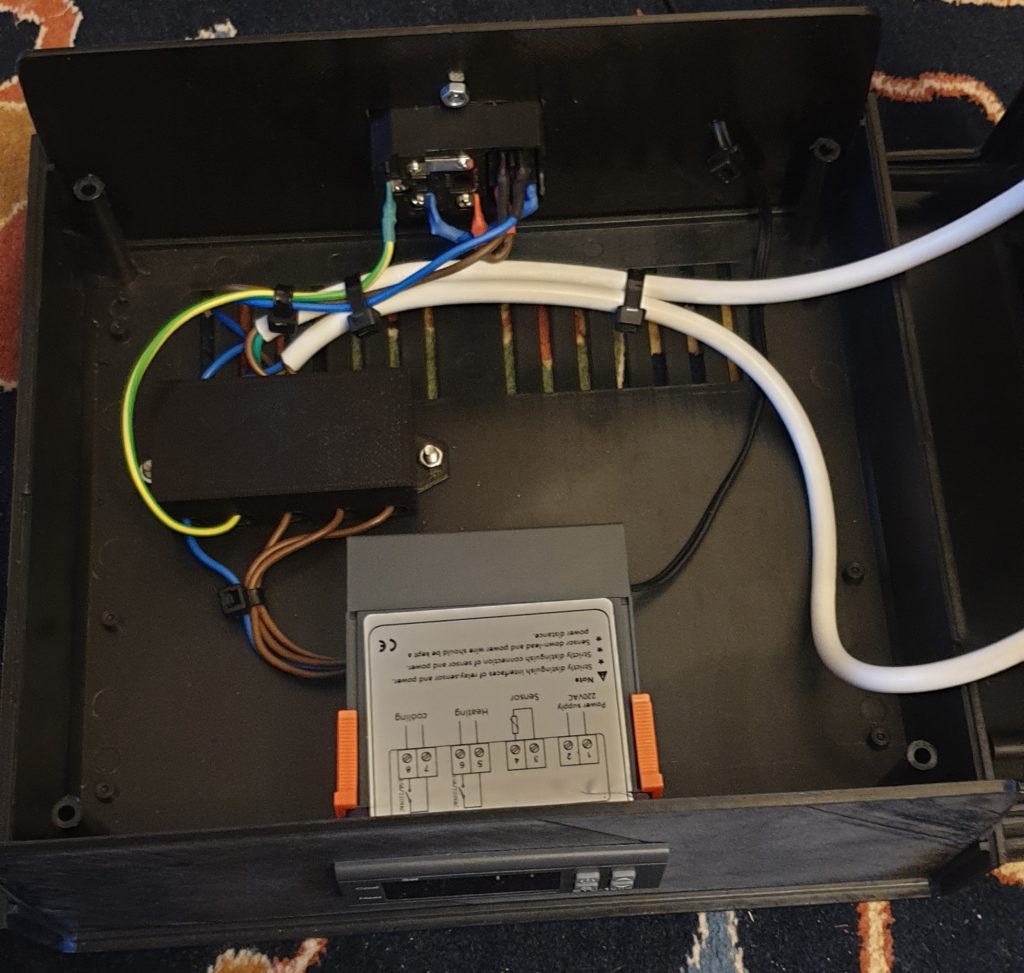

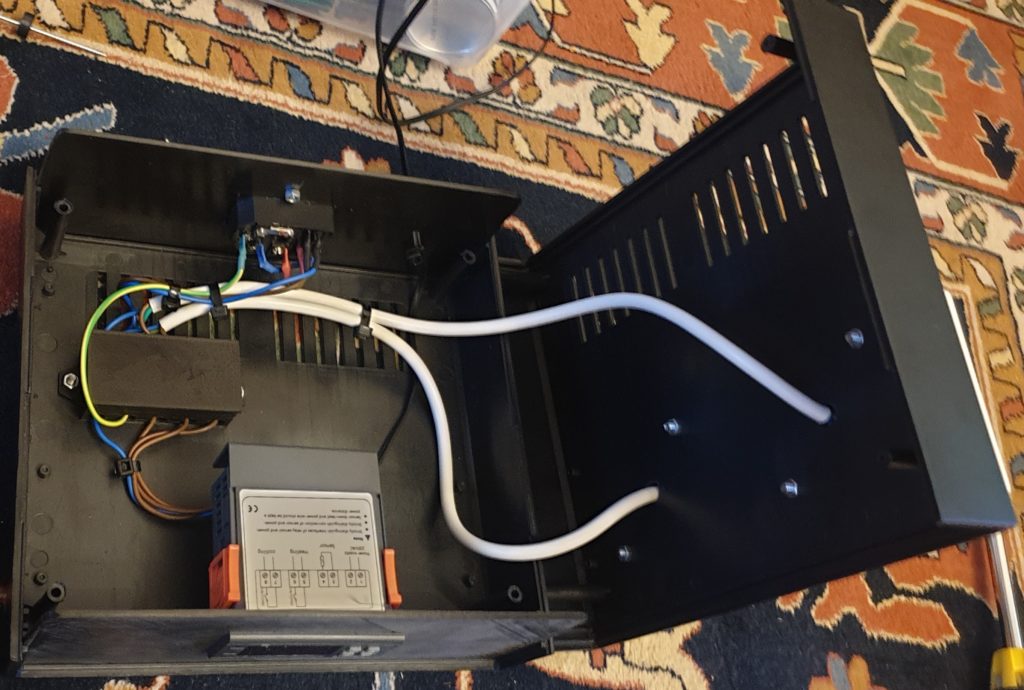

Build – Wiring the Terminal Block

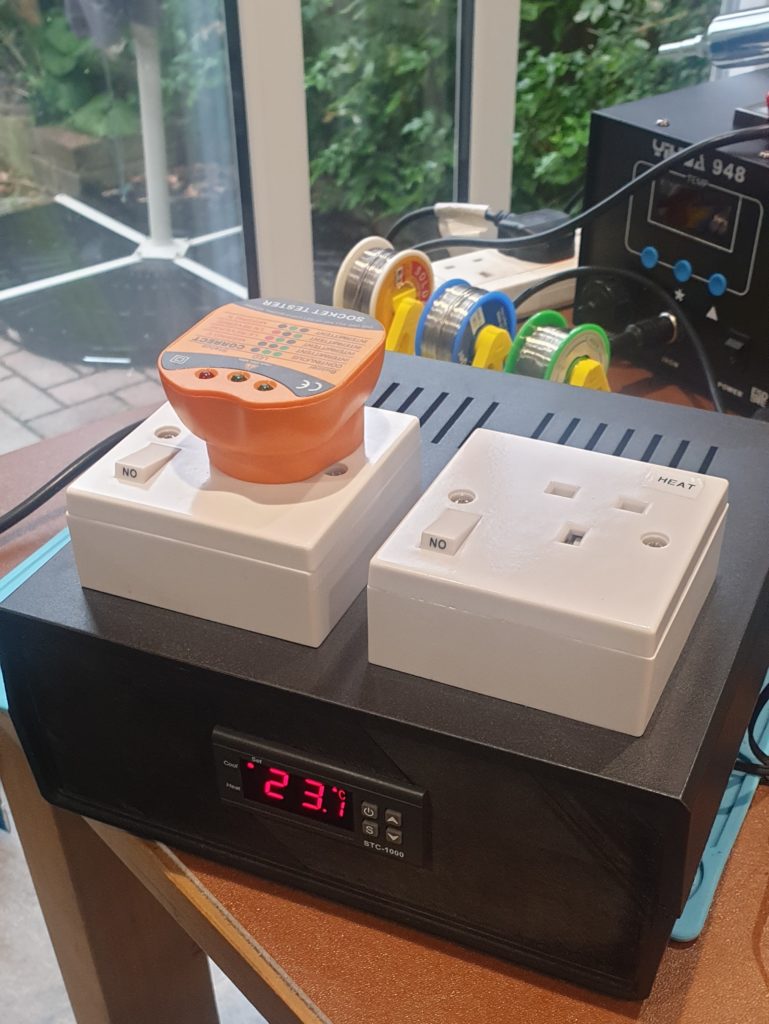

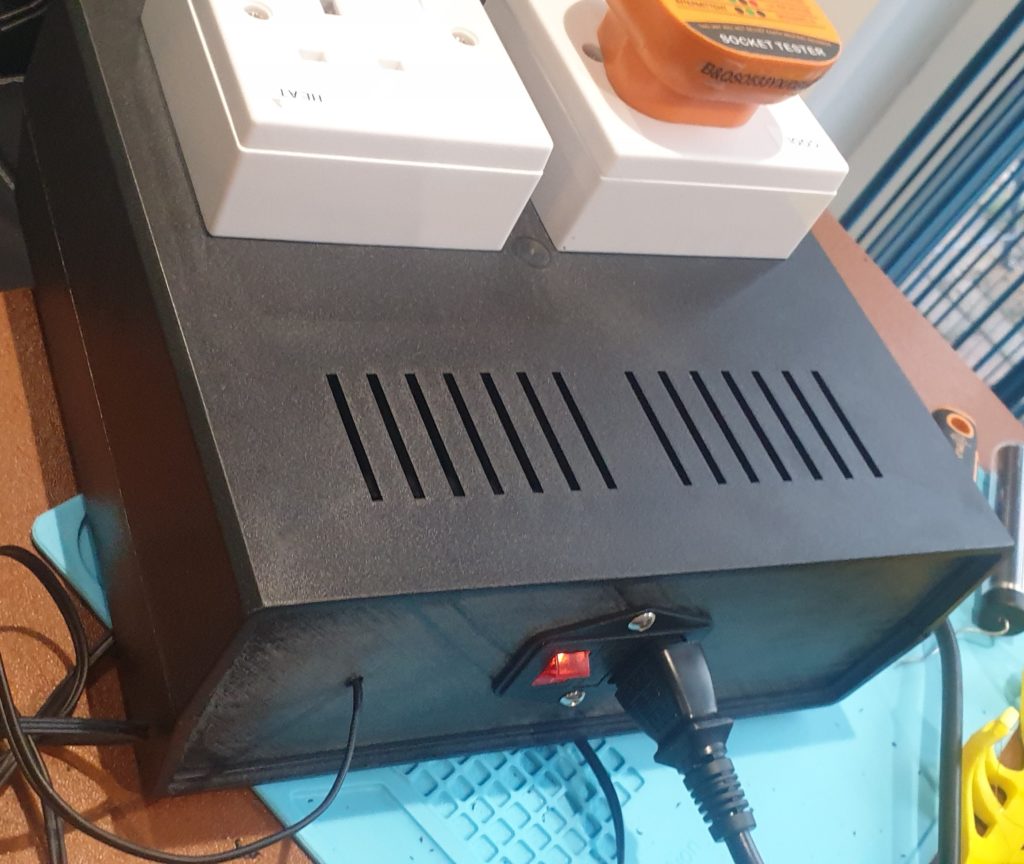

Test

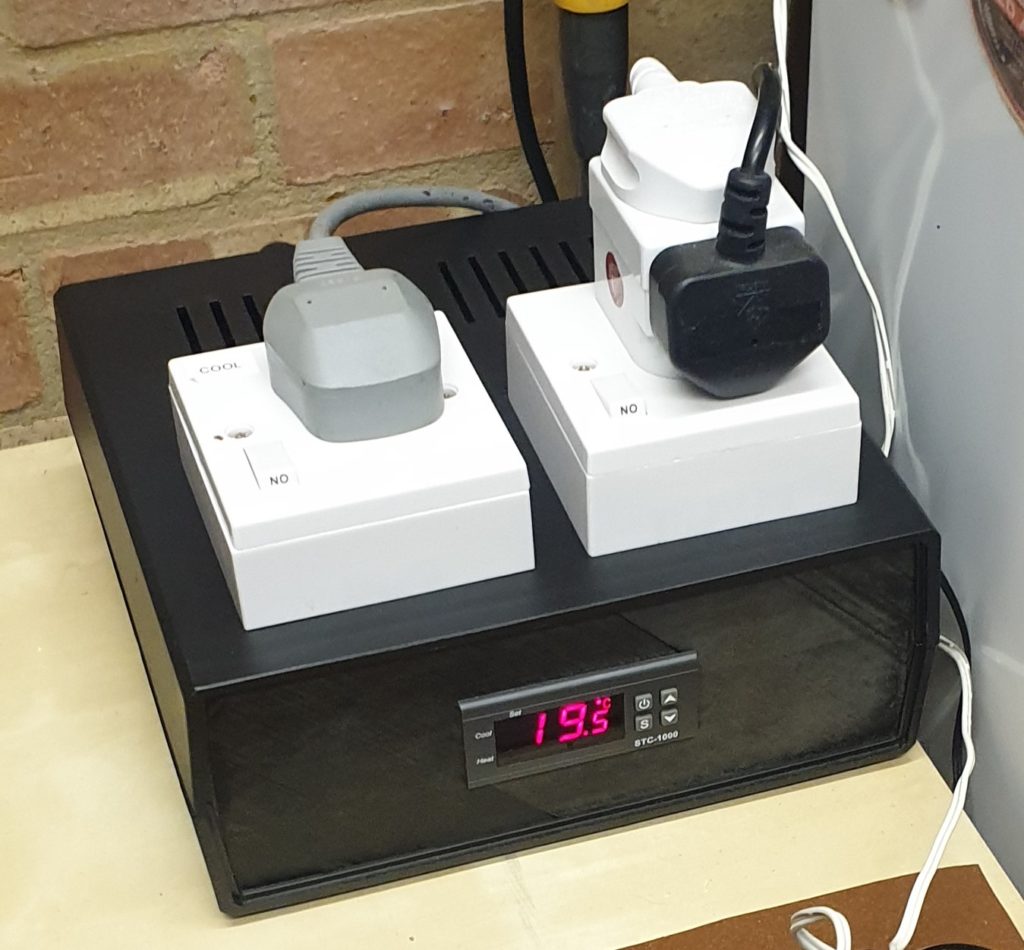

Install

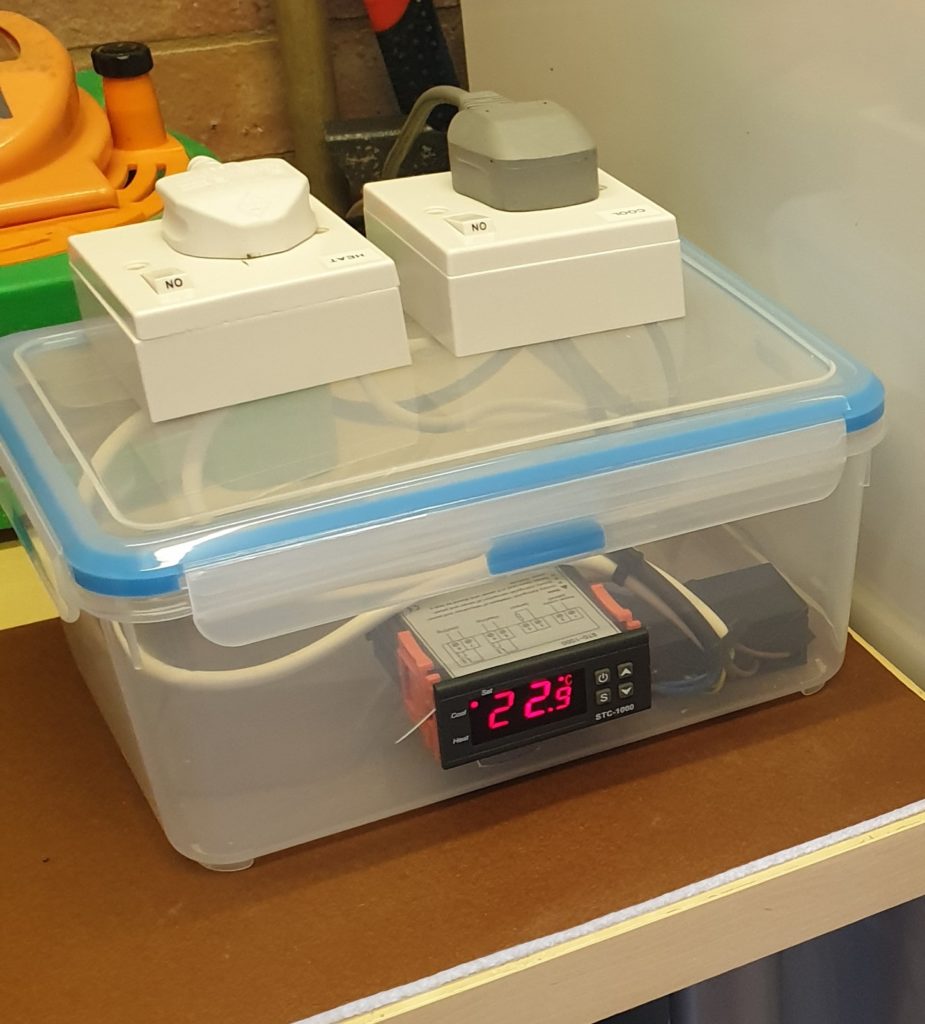

Project Images
